Description

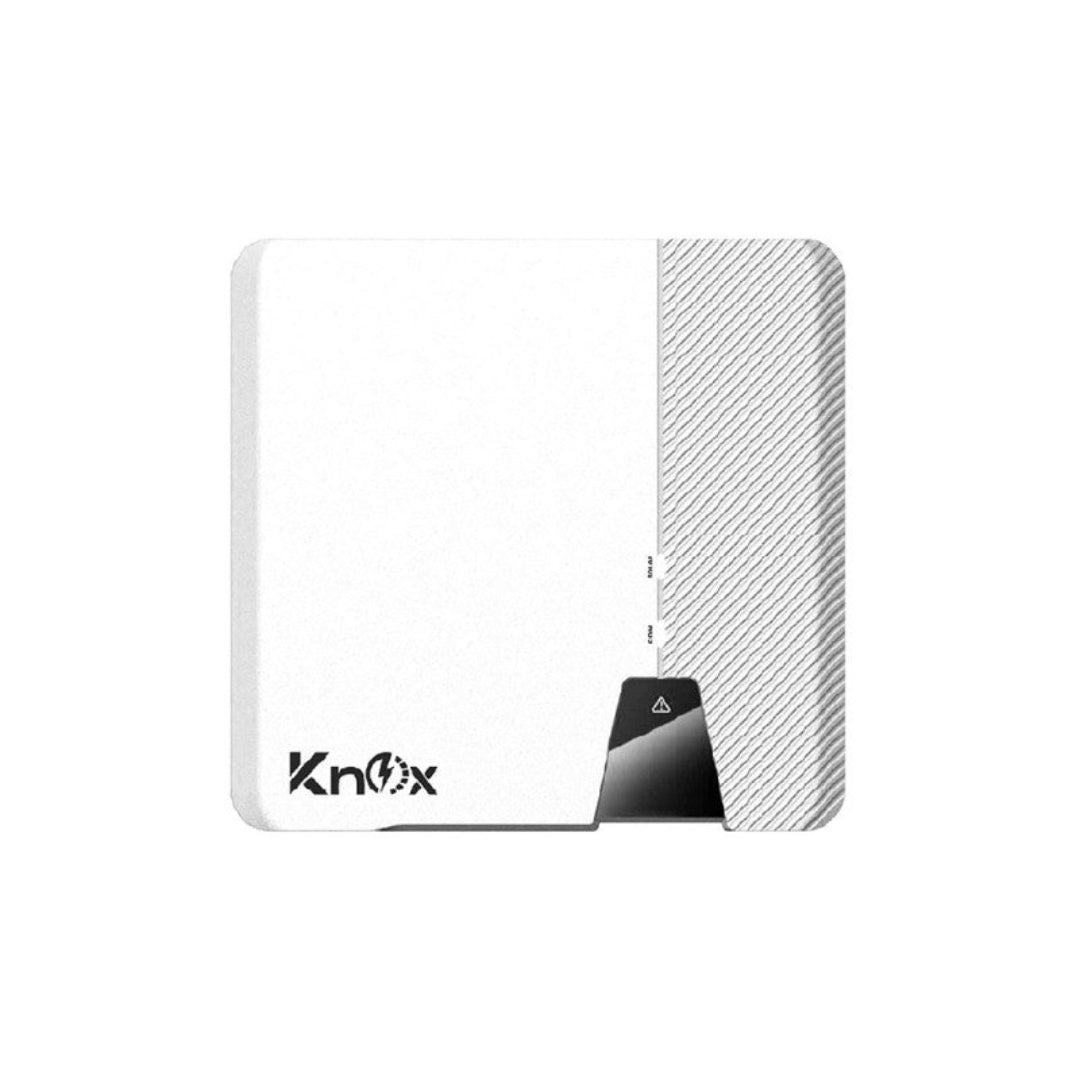

ASW 12K-LT-G2 12kW On-Grid Solar Inverter
The ASW 12K-LT-G2 12kW On-Grid Solar Inverter is a high-performance solution for residential and commercial solar systems. Designed for maximum efficiency and reliability, this inverter offers advanced communication, flexible installation, and robust protection to ensure seamless energy conversion.
Key Features
- Communication Interface: Supports Wi-Fi and RS485 for real-time system monitoring and remote management.
- Degree of Protection: IP65-rated, making it dustproof and waterproof, ideal for outdoor use.
- Max PV Array Power: Supports up to 18,000W, ensuring superior energy generation.
- Multiple MPPT Inputs: Features two independent MPPT inputs (2/A:2; B:1) for optimal energy harvesting.
- Wide MPPT Voltage Range: 150V to 1000V, with a rated input voltage of 630V, allowing compatibility with various solar panels.
- Rated Power Output: 12,000W with three-phase feed-in, making it ideal for larger solar installations.
- Smart Cooling System: Active cooling enhances performance and longevity.
- Compact and Lightweight: Weighs 17.3 kg, ensuring easy handling and installation.
Specifications
- AC Nominal Voltage: 220V/380V – 230V/400V – 240V/425V
- Max Short Circuit Current: 40A / 40A
- Rated Grid Frequency: 50Hz
- Max Operating Altitude: 3000m
- Self-Consumption (at night): <1W
The ASW 12K-LT-G2 12kW On-Grid Solar Inverter is an efficient and durable choice for those seeking a high-power, grid-tied solar solution with advanced protection, monitoring, and energy optimization features.
Technical Data Sheet
| Technical Data | ASW 12K-LT-G2 12kW |
| Input DC | |
| Max PV array Power | 18000 WP STC |
| Max in put voltage | 1100 v |
| MPP Voltage range/ rated input voltage | 150 v to 1000 v / 630 v |
| Main Input voltage | 125 V |
| Initial Feed- in voltage | 26 A /26 A |
| Max Operating input current | 40 A / 40 A |
| Max short circuit current | 2/A:2; B:1 |
| Number of independent MPP inputs/ String per MPP input | |
| OUTPUT AC | |
| Rated active power | 12000 W |
| Max apparent AC Power | 12000 V A |
| AC nominal voltage | 220 V/ 380 V -230 V / 400 V -240 V/ 425 V |
| AC voltage range | 160 V TO 300 V |
| AC Grid frequency | 19.1 A |
| Rated grid frequency / rated grid voltage | |
| Max Output Current | 0.8 over excited to 0.8 under excited |
| Power factor at rated active power | 1 |
| Adjustable Displacement | 0.8 over excited to 0.8 under excited |
| feed-in phase | 3 |
| Harmonic Distortion (THD) at rated out put | <3% |
| Efficiency and Protection | |
| Max efficiency / European efficiency | 98.6 % / 98.2 % |
| ALL-pole- sensitive residual- current monitoring unit | 17. 3 KG |
| Protection class( according ti IEC 62109-1)/ overvoltage category( according to IEC 62109-1) | I/AC: III; DC: II |
| General Data | |
| Weight | 17.3 KG |
| Operating temperature range | -25 C -+60 C |
| Self Consumption (at night) | <1W |
| Topology | Transformer less |
| Cooling Concept | Active cooling |
| Degree of protection ( according to IEC 60529 | IP65 |
| Climatic category ( according to IEC 60721- 3-4 | 4K4H |
| Max permissible valuable for relative Humidity ( non- condensing) | 100% |
| Max operating altitude | 3000 M |
| Features | |
| DC connection | Phoenix contact |
| AC connection | plug- in connector |
| MOUNTING TYPE | wall- mount bracket |
| LED indicator ( status/ Fault/ Communication) | |
| Communication interface | wi-Fi/ Rs485 |
| Certificate ad approvals ( more available on request) | CE,EN 50549, 1EC 62109, IEC 62116, IEC 61727, IEC 616 83, IEC 60068, 1EC 60068,IEC 6100,AS/NZS4777,C10/C11 |
