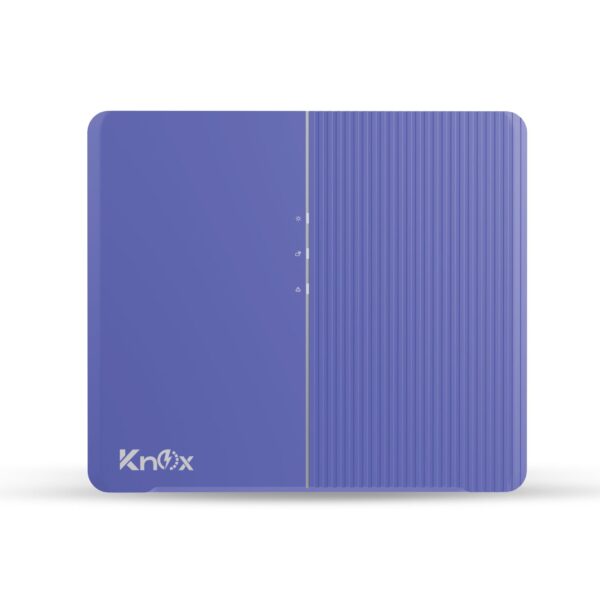

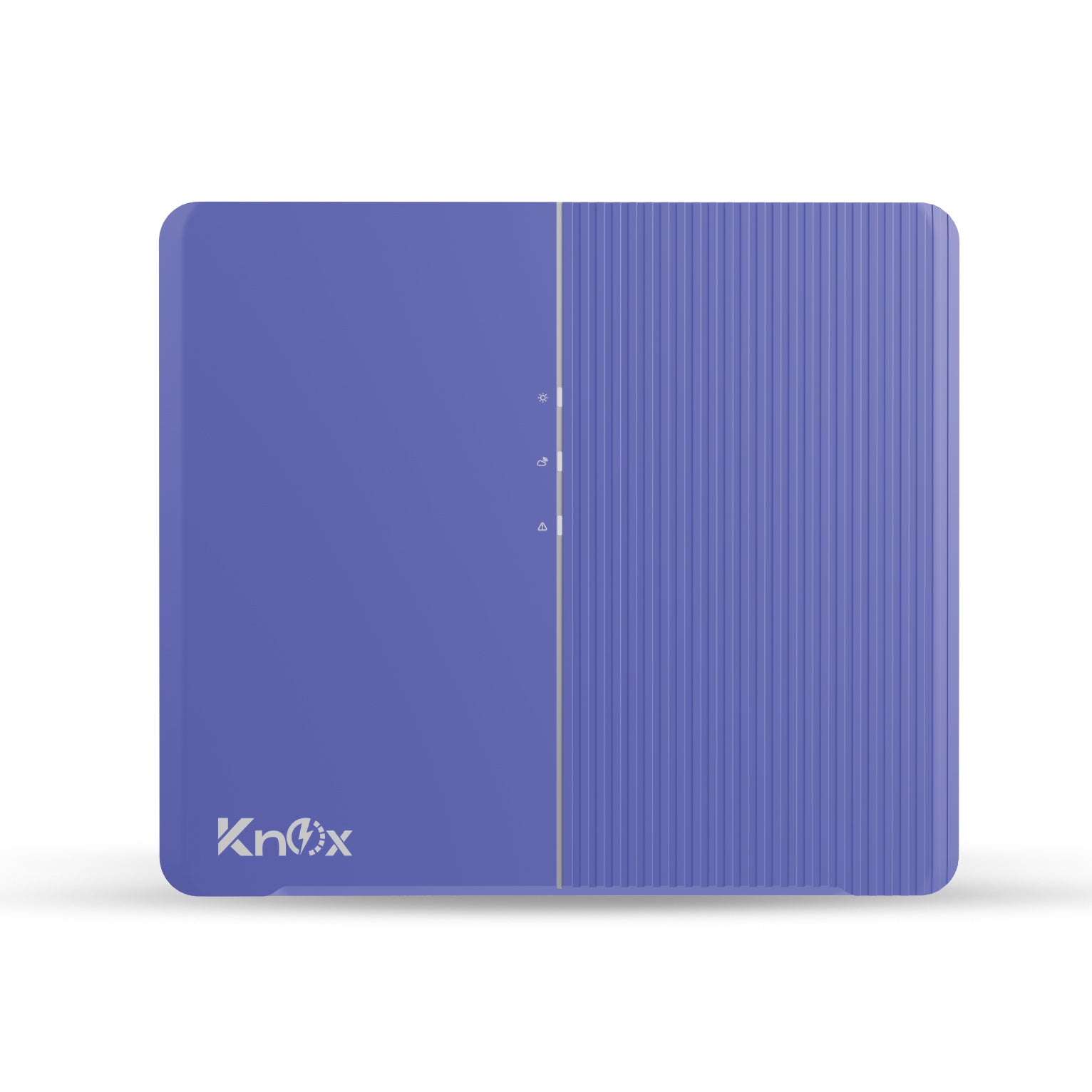

Knox XEROX Series G4 10K/15kpV Three-Phase Solar Inverter ? High Efficiency & Reliability
Upgrade your solar energy system with the Knox XEROX Series G4 10K/15kpV Three-Phase Solar Inverter , a high-performance and durable solution designed for residential and commercial applications. With a rated output power of 10,000W and a max PV modules power of 15,000W, this inverter ensures maximum energy efficiency and productivity.
Download DataSheet
|
Model
|
G410K/15kpV
|
|
Type
|
Three Phase Inverter
|
|
Max. PV Modules Power (W)
|
15,000 W
|
|
Max. Input Voltage (V)
|
1100 V
|
|
Initial Feed-in Voltage (V)
|
180 V
|
|
Min. Input Voltage (V)
|
125 V
|
|
Rated Input Voltage (V)
|
630 V
|
|
MPPT Voltage Range (V)
|
150 – 1000 V
|
|
Full Load DC Voltage Range (V)
|
400 – 850 V
|
|
Max. DC Input Current (A)
|
20 / 16 A
|
|
Isc PV Absolute Current (A)
|
30 / 25 A
|
|
Number of MPPT Trackers
|
2
|
|
Strings per MPPT Tracker
|
1 / 1
|
|
Max. Output Apparent Power (VA)
|
11,000 VA
|
|
Rated Output Power (W)
|
10,000 W
|
|
Max. AC Output Current (A)
|
16.0 A
|
|
Nominal Grid Voltage (V)
|
230, 3/N/PE
|
|
Nominal Frequency (Hz)
|
50 / 60 Hz
|
|
Power Factor
|
0.8 ind ~ 0.80 cap
|
|
Topology
|
Non-isolated
|
|
Operating Temperature Range
|
-25?C to +60?C
|
|
Degree of Protection
|
IP66
|
|
Design
|
Compact wall mount for outdoor use
|
