Description

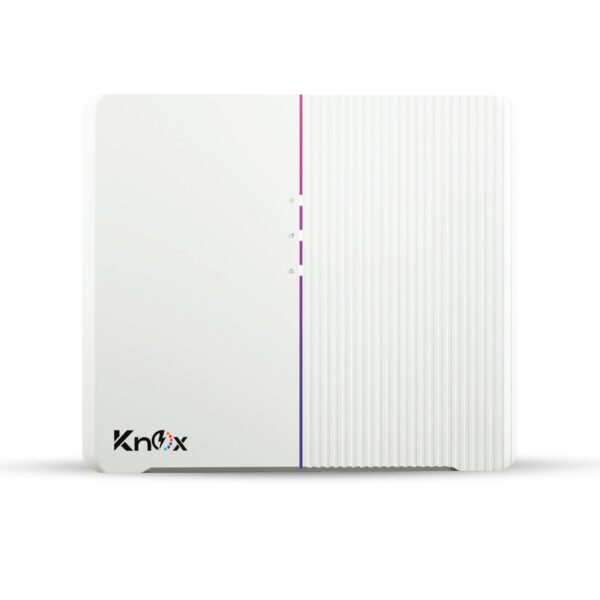

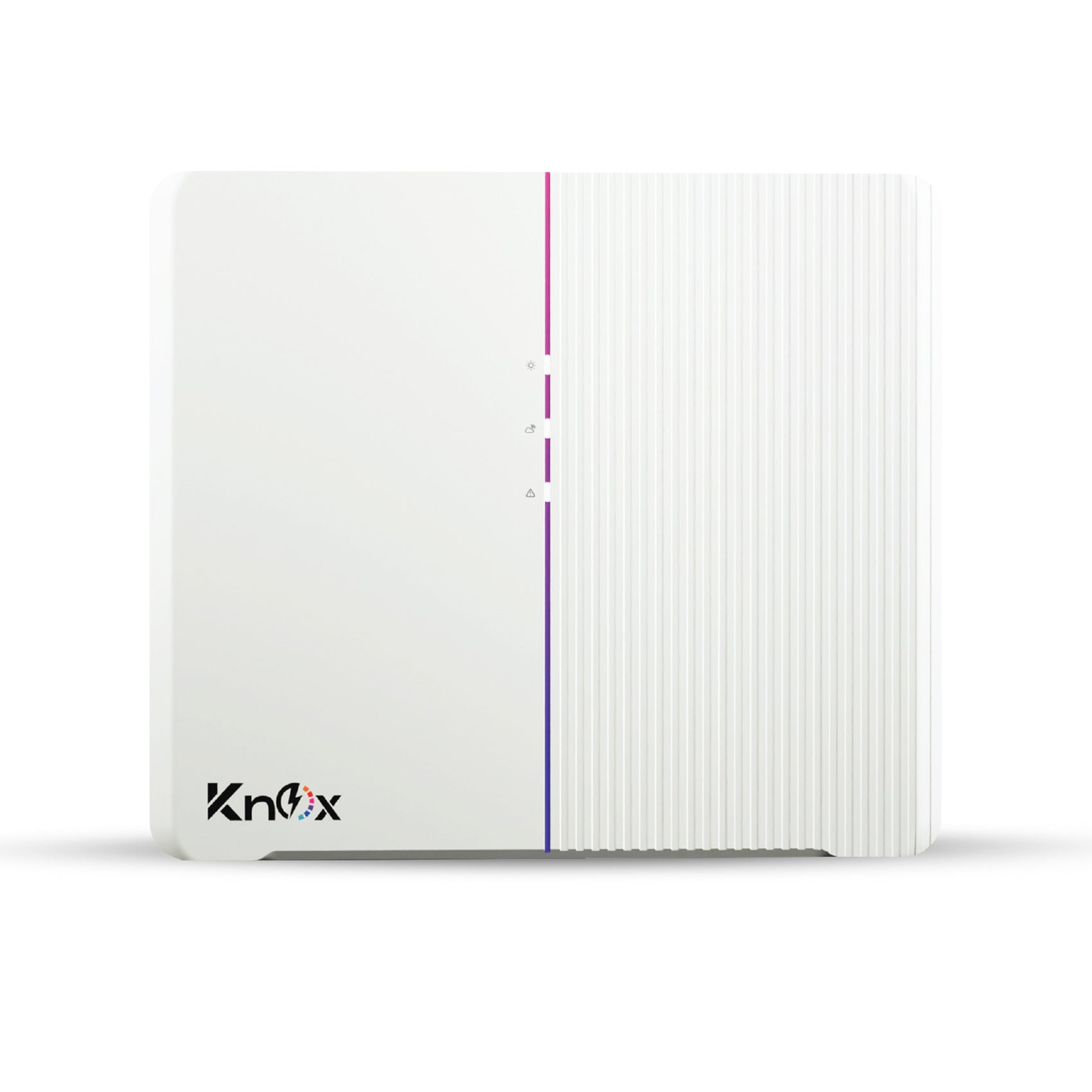

The Knox G4 Pro 25KW On-Grid Solar Inverter is a powerful and reliable solution for solar energy systems. It supports up to 32,500W of solar panel power and works with a maximum input voltage of 1100V. With dual MPPT trackers and a wide voltage range of 150~1000V, it ensures efficient energy conversion. It delivers 25,000W of rated output power and can handle up to 27,500VA. The inverter supports 230V (3/N/PE) grid connection, works at 50/60Hz, and has a power factor range of 0.8 ind to 0.8 cap. Built with IP66 protection and designed to operate from -25C to +60C, it’s perfect for both indoor and outdoor use.
Download DataSheet
|
Max. PV modules power (W)
|
32,500
|
|
Max. input voltage (V)
|
1100
|
|
Initial feed-in voltage (V)
|
180
|
|
Min. input voltage (V)
|
125
|
|
Rated input voltage (V)
|
560
|
|
MPPT Voltage Range (V)
|
150 ~ 1000
|
|
Full load DC voltage range (V)
|
400 ~ 850
|
|
Max. DC input current (A)
|
40 / 32
|
|
Isc PV, Absolute current (A)
|
60 / 48
|
|
Number of MPPT Trackers
|
2
|
|
Strings per MPPT Tracker
|
2 / 2
|
|
Max. Output apparent power (VA)
|
27,500
|
|
Rated Output power (W)
|
25,000
|
|
Max. AC Output Current (A)
|
39.8
|
|
Nominal Grid Voltage (V)
|
230, 3/N/PE
|
|
Nominal Frequency (Hz)
|
50/60
|
|
Power Factor
|
0.8 ind ~ 0.80 cap
|
|
Topology
|
Non-isolated
|
|
Operating temperature range (?C)
|
-25 to +60
|
|
Degree of protection
|
IP66
|
