Description

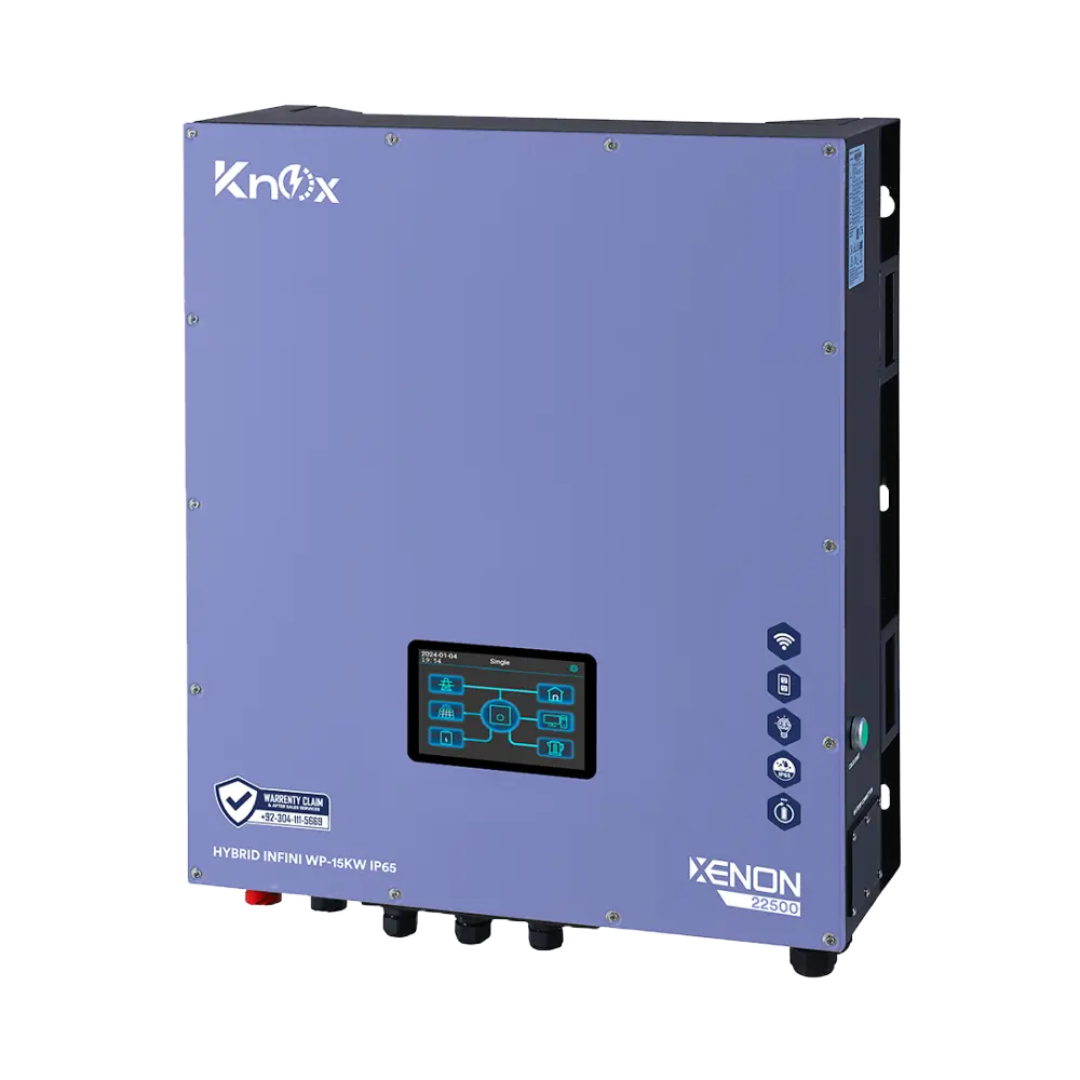

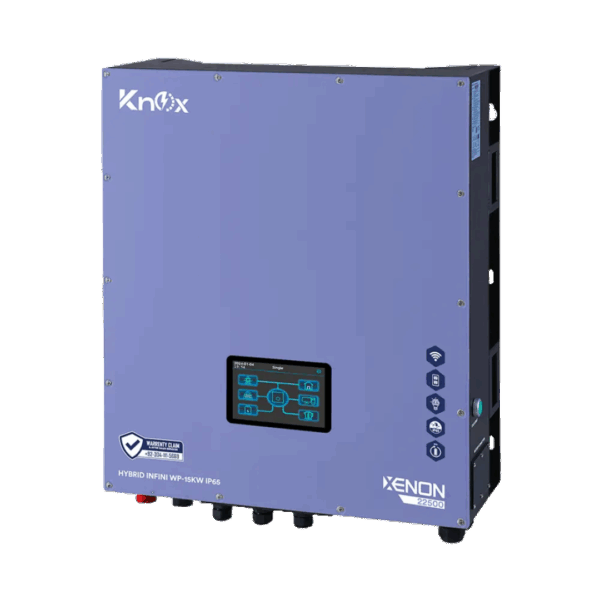

Knox Xenon 22500 15KW 3 Phase Hybrid Solar Inverter with PV 22500W
The Knox Xenon 22500 is a high-performance 3-phase hybrid solar inverter designed to efficiently manage solar power in both residential and commercial setups. With its built-in Wi-Fi for online monitoring and an IP65 rating for protection, it offers reliable performance and durability for long-term use.
Key Features
- Built-In Wi-Fi for Online Monitoring: Allows remote access to system performance and settings for easy monitoring and control via a mobile app.
- Durability and Protection with IP65 Rating: Ensures the inverter can withstand harsh weather conditions and is suitable for both indoor and outdoor installations.
- Dual Output for Smart & Heavy Load: Features two outputs to handle both sensitive electronics and heavy power loads efficiently.
- Grid-Tied Solar Power Integration: Enables seamless connection with the grid, allowing users to sell excess energy back to the grid and reduce energy costs.
- Batteryless Operation: Designed to function without the need for batteries, reducing system complexity and maintenance.
- Battery Management System: Optimizes battery performance when used with compatible storage systems, ensuring efficient energy use and longer battery life.
- 2 Year Full Warranty and 10 Year Service Warranty: Provides peace of mind with robust warranty coverage, ensuring the inverter~s reliability over time.
The Knox Xenon 22500 is a powerful and versatile hybrid inverter ideal for commercial and residential solar installations, offering superior durability, efficient power management, and the flexibility of grid-tied and batteryless operation.
Technical Data Sheet:
| KNOX SERIES | Xenon 22500 Twin |
| MODEL | INFINISOLAR WP 15KW |
| Phase | Three Phase |
| Maximum Pv Input Power | 22500 W |
| Rated Output Power | 15000 W |
| Maximum Charging Power | 15000 W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 720 VDC / 1000 VDC |
| Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC |
| MPP Voltage Range | 350 ~ 950 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / A: 27A, B: 27A |
| Number of Strings Per MPP Tracker | A: 2, B: 2 |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC or 184 – 264.4 VAC (Selectable) |
| Nominal Output Current | 21.7 A per phase |
| Power Factor range | 0.9 lag ~ 0.9 lead |
| Surge Power | 30000VA |
| No Load Power Consumption | 60W/P |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| European Efficiency@ Vnominal | 95% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 – 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 170 – 290 VAC per phase |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| PV INPUT (DC) | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Output Waveform | Pure sine wave |
| Transfer Time | 10 ms (For Personal Computers) |
| 20 ms (For Home Appliances) | |
| Efficiency (DC to AC) | 91% |
| BATTERY & CHARGER | |
| Battery Voltage Range | 40 ~ 62 VDC |
| Maximum Charging Current | 300 A |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger type | MPPT |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 255 x 660 x 750 |
| Net Weight (kgs) | 73 |
| INTERFACE | |
| Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
| Intelligent Slot | Optional for SNMP and Modbus cards |
| Parallel Capability | YES, 6 units |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -25 to 60~C |
| Storage Temperature | -15C to 60 C |
| Altitude | 0 ~ 1000 m |
